Database Design
ER模型，数据库的概念结构设计的工具
- Requirements
- Conceptual Schema Design (Chapter 6 & 7)
- Logical schema design(Input ER model, output Logical Model)
- Physical Schema Design
- Implementation
- System Testing
- Delivery & Maintenance
主要是概念设计，逻辑设计和物理结构设计
ER model
- entity sets(实体集)
- relationship sets(联系集)
- attributes(属性)
Entity
An entity is an object that exists and is distinguishable from other objects.
E.g.:specific person, company, event, plant
An entity set is a set of entities of the same type that share the same properties. E.g.: set of all persons, companies, trees
An entity is represented by a set of attributes
Attribute
Attribute types:
- Simple and composite attributes
- Single-valuesd and multivalued attributes
- Derived attributes(导出属性)
Relationship Set
A relationship is an association among several entities.
A relationship set is a mathematical relation among entities, each taken from entity sets.
联系也可能有属性
Degree of a Relationship Set
定义在同一个实体集内的联系：一元联系 定义在两个实体集之间：二元联系 定义在三个实体集之间：三元联系
Mapping Cardinality
是实体集之间的对应，而不是属性集

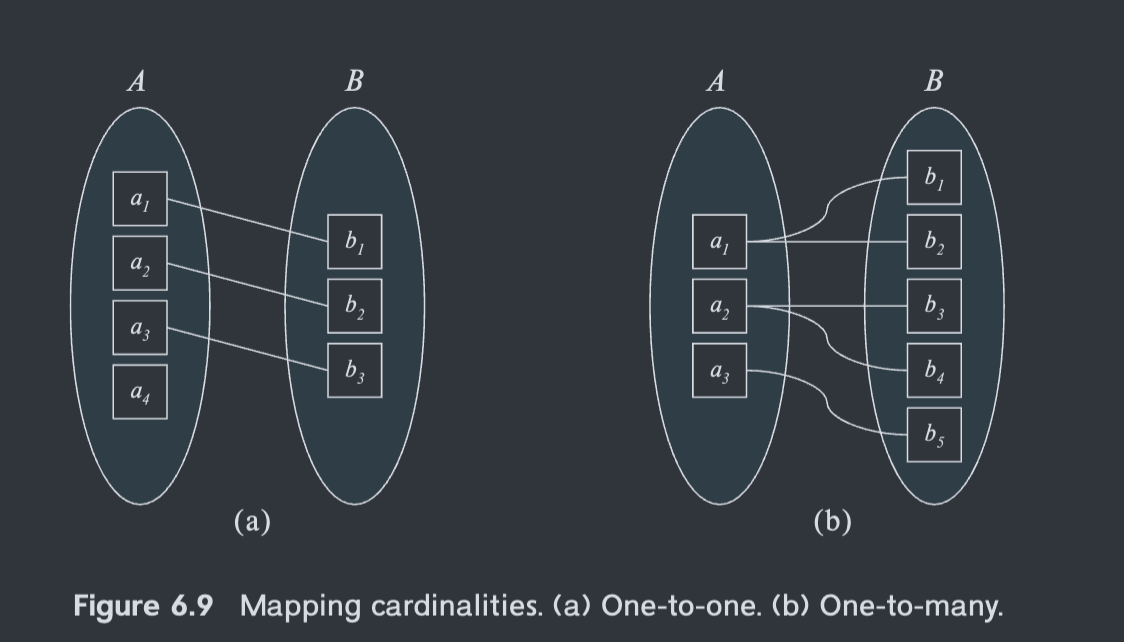

- One-to-one. An entity in A is associated with at most one entity in B, and an entity in B is associated with at most one entity in A. (See Figure 6.9a.) •
- One-to-many. An entity in A is associated with any number (zero or more) of enti- ties in B. An entity in B, however, can be associated with at most one entity in A. (See Figure 6.9b.)
- Many-to-one. An entity in A is associated with at most one entity in B. An entity in B, however, can be associated with any number (zero or more) of entities in A. (See Figure 6.10a.)
- Many-to-many. An entity in A is associated with any number (zero or more) of entities in B, and an entity in B is associated with any number (zero or more) of entities in A. (See Figure 6.10b.)
Weak Entity Set
没有主键的实体集
E-R Diagrams

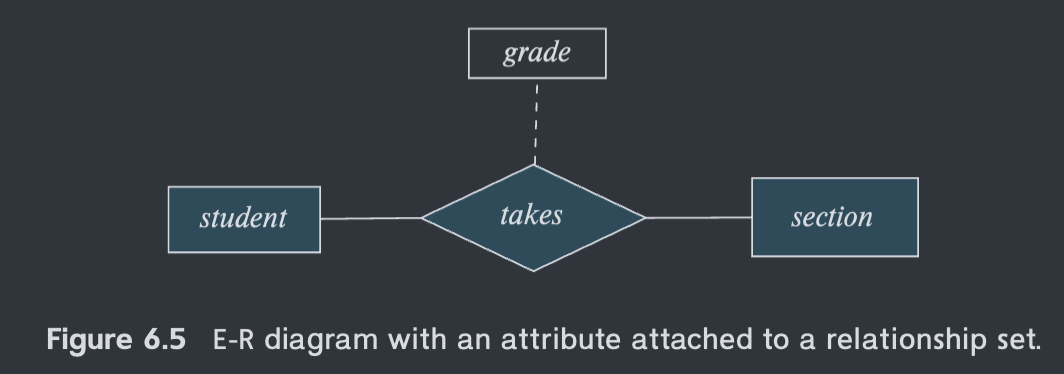

虚线连接表示联系集的属性
Entity sets of a relationship need not be distinct
- Each occurrence of an entity set plays a “role” in the relationship
- The labels “course_id” and “prereq_id” are called roles
Mapping diagrams
全参与和部分参与
instructor 部分参与，student 全参与 有老师不指导学生，但是每个学生都有指导的老师
Notation for Expressing More Complex Constraints

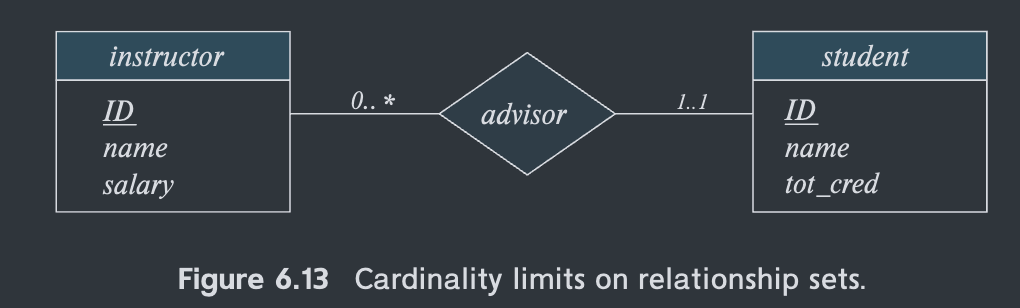

A line may have an associated minimum and maximum cardinality, shown in the form l..h, where l is the minimum and h the maximum cardinality. A minimum value of 1 indicates total participation of the entity set in the relationship set; that is, each entity in the entity set occurs in at least one relationship in that relationship set. A maximum value of 1 indicates that the entity participates in at most one relationship, while a maximum value ∗ indicates no limit.
It is easy to misinterpret the 0.. ∗ on the left edge and think that the relationship advisor is many-to-one from instructor to student —this is exactly the reverse of the correct interpretation. If both edges have a maximum value of 1, the relationship is one-to-one. If we had specified a cardinality limit of 1.. ∗ on the left edge, we would be saying that each instructor must advise at least one student.
用0..*这类值(min,max)去表达一对一、多对多等，以及全参与，部分参与等
- 最小值表示全参与(>=1)和部分参与(0)
- 最大值表示这个实体集最多多少次出现在联系集中，可以表示一对一(1:1)、一对多(1:*)、多对多等

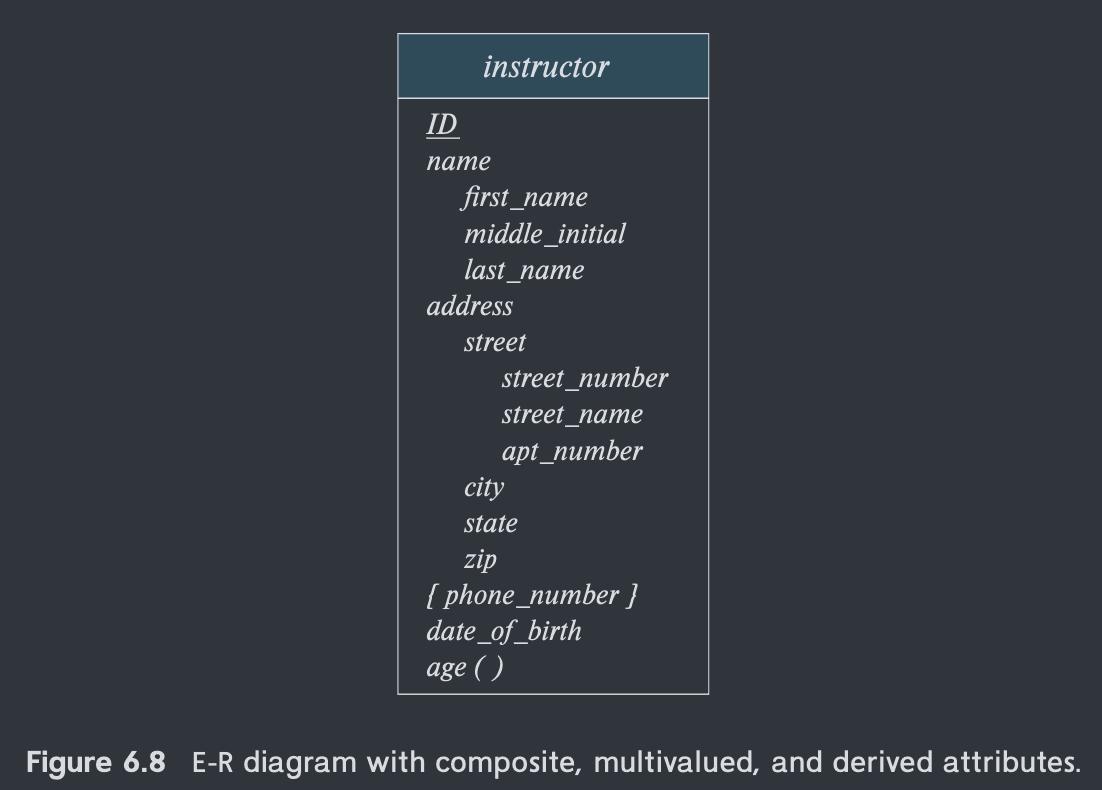

{ phone_number }表示多值属性
age()表示导出属性
弱实体集
虚线表示部分键
E.g.
先定义出实体集，再定义出联系集，再定义出有什么属性，属性的类型是什么样子的
