FCFS SJF RR 多级反馈队列 彩票
Scheduling Concept
- Why we need scheduling? Multitasks and Concurrency.
- Scheduling is only useful when there is not enough resources.
- Preemption(抢占) is the basic assumption for fine-grained scheduling
- Either by timer interrupts or other kinds of interrupts
- Who schedules processes/threads?
- Mostly by OS
- User-level thread libraries schedule the threads by themselves
Goals
Minimize Response Time(最小化反应时间)
- Minimize elapsed time to do an operation (or job)
- Response time is what the user sees:
- Time to each a keystroke in editor
- Time to complie a Program
Maximize Throughput(最大化吞吐量)
- Maximize operations (or jobs) per second
- Throughput related to response time, but not identical;
- Two parts to maximizing throughput
Fairness(公平性)
- Share CPU among users in some equitable way
- Fairness is not minimizing average response time;
- Better average resposne time by making system less fair
FCFS(先到先服务)
First-Come, First-Served
- Also “First In, First Out” or “Run until done”
- In early systems, FCFS meant one program scheduled until done
- Now, means keep CPU until thread blocks(线程是CPU调度的最小单元)
问题是护航效应
要知道怎么求
- Waiting time/Average waiting time
- Average Completion time
SJF(短任务优先)
解决了护航问题，理论上响应时间最短，但是会饥饿，而且OS也不知道任务要跑多久
RR

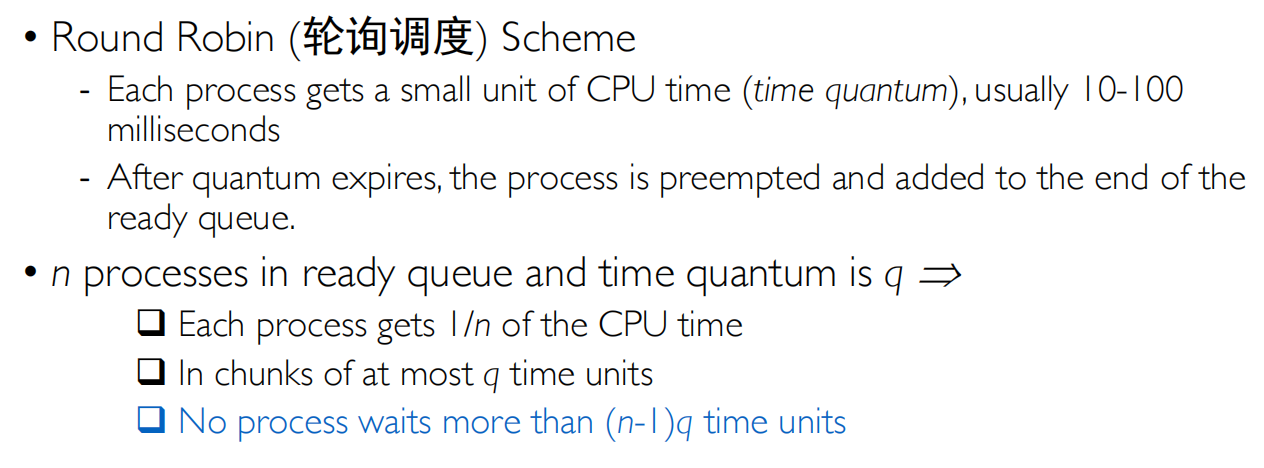

Round Robin(轮询调度) Scheme
每个任务得到CPU的一段时间，跑完之后重新放回队列中
-

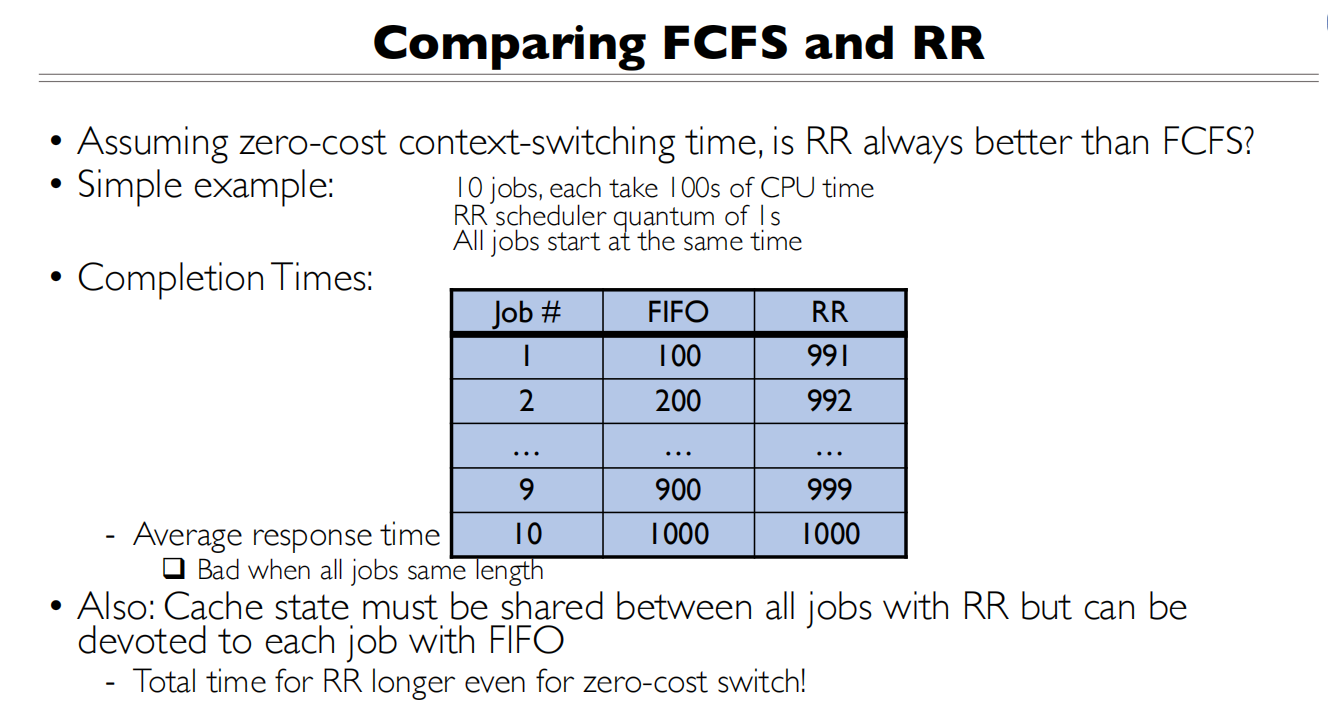

Thus, Round-Robin Pros and Cons:
- Better for shor t jobs, Fair (+)
- Context-switching time adds up for long jobs (-)
-
How do you choose time slice?
- Too large: Response time suffers
- What if infinite? Falls back to FIFO
- Too small: Throughput suffers
- Too large: Response time suffers
-
Actual choices of timeslice:
- Initially, UNIX timeslice one second:
- Worked ok when UNIX was used by one or two people.
- What if three compilations going on? 3 seconds to echo each keystroke!
- Need to balance short-job performance and long-job throughput:
- Typical time slice today is between 10ms – 100ms
- Typical context-switching overhead is 0.1ms – 1ms
- Roughly 1% overhead due to context-switching
- Initially, UNIX timeslice one second:

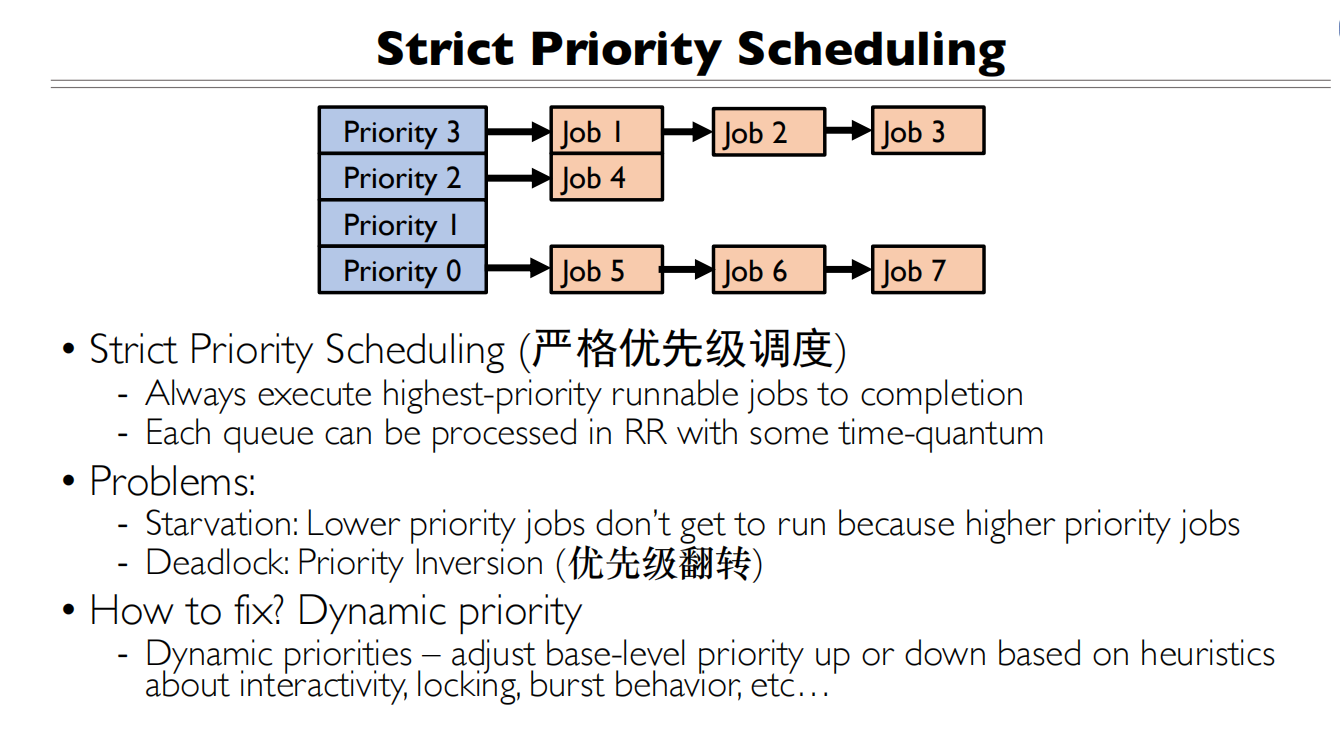

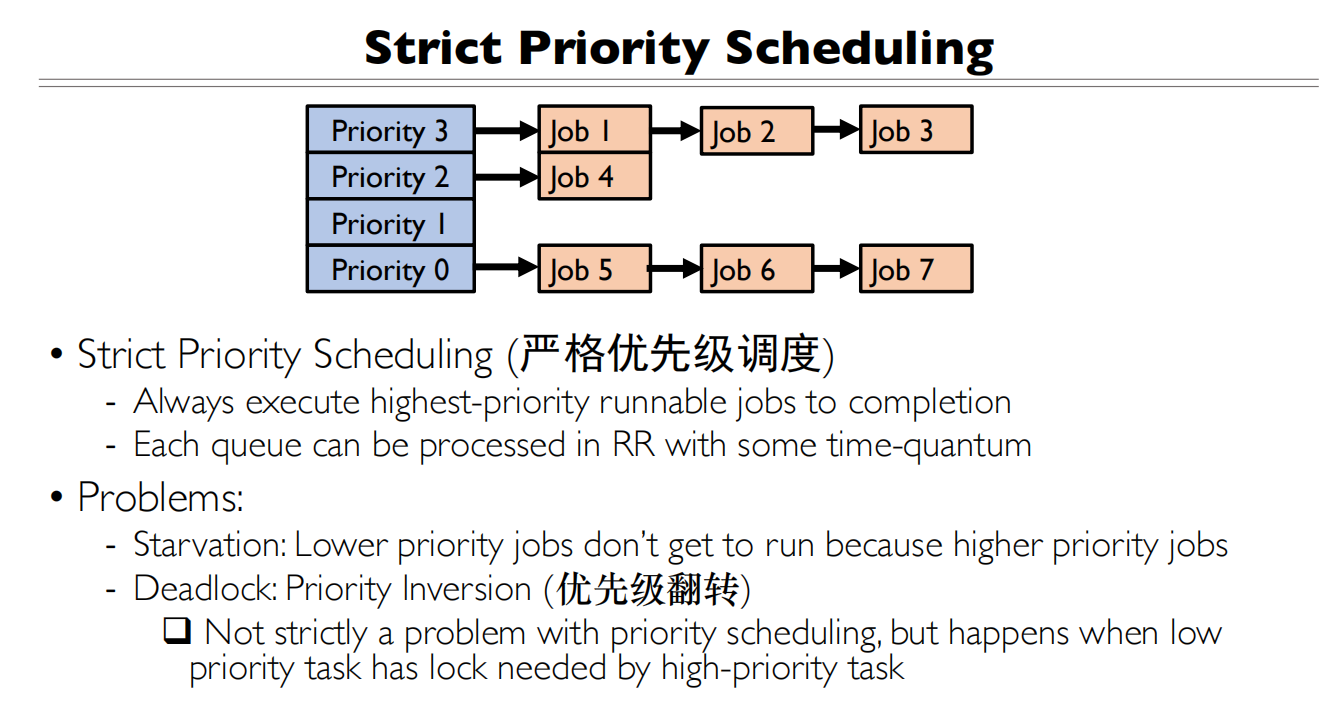

严格优先级调度
死锁会导致优先级反转，如何解决这个问题？
Earlises Deadline First(EDF)

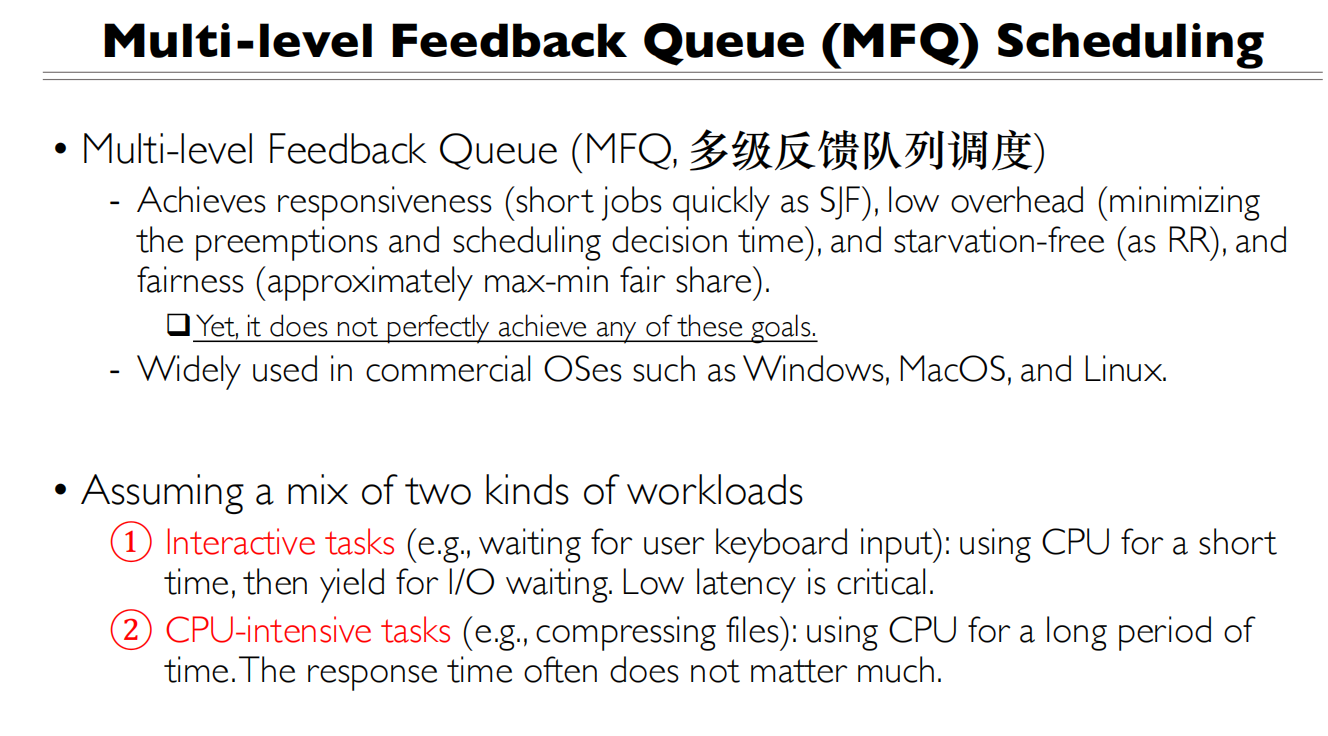

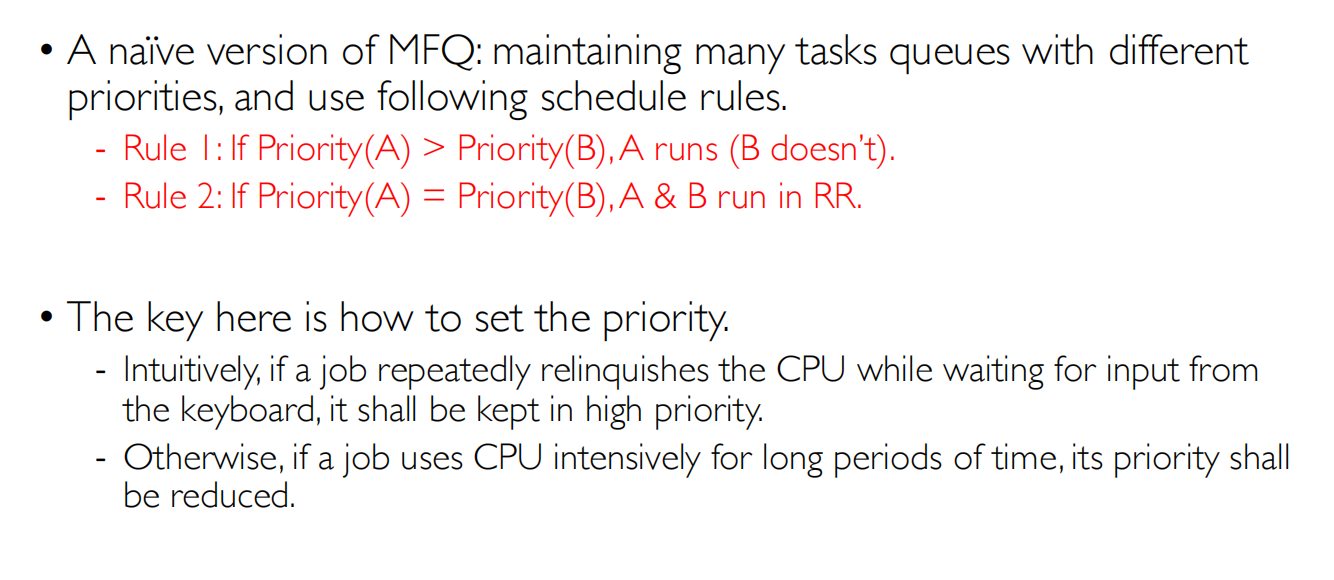

MFQ(多级反馈队列)
任务的需求不同：
- 高I/O：需要早点调度(鼠标点击等)
- 计算任务

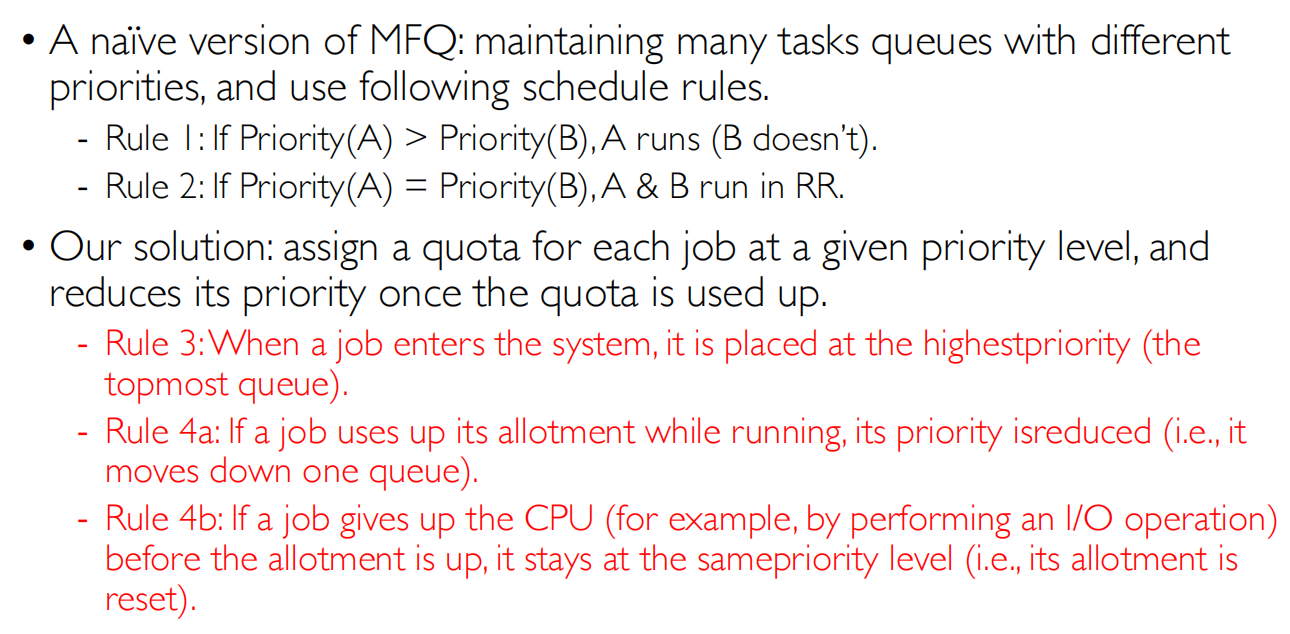

动态的优先级调度
- 如果时间片用完了，优先级降1级
- 如果有I/O进入，则重新放到最优先级

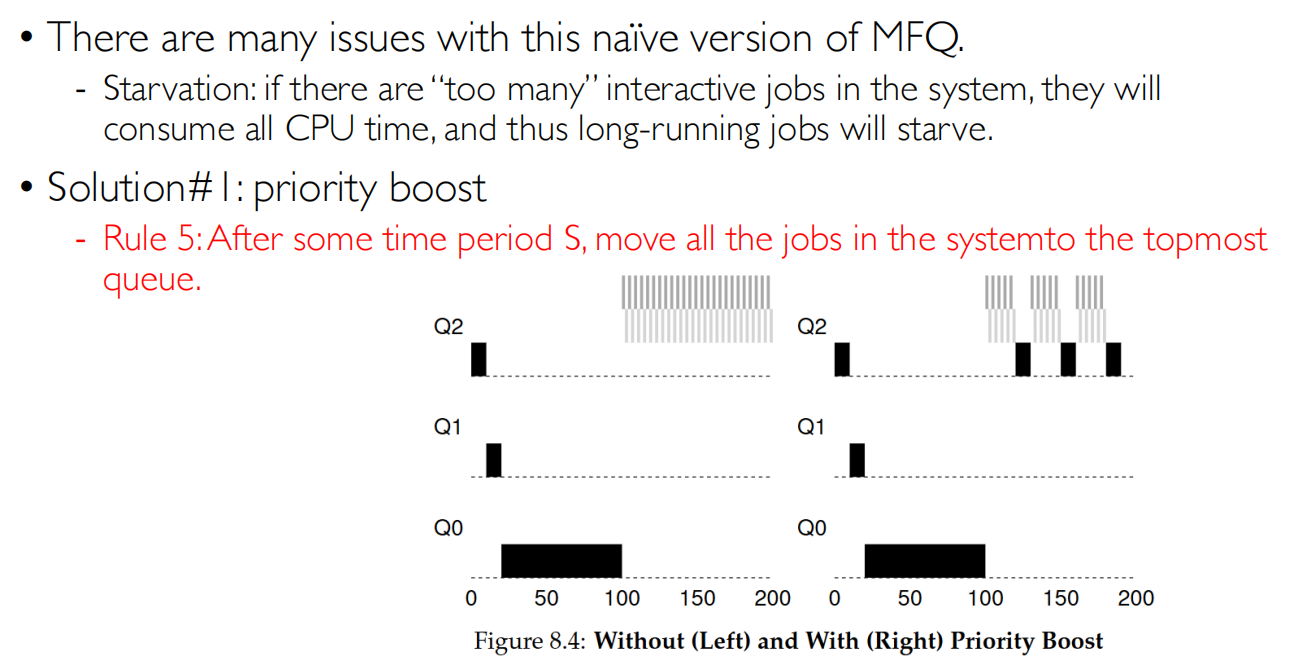

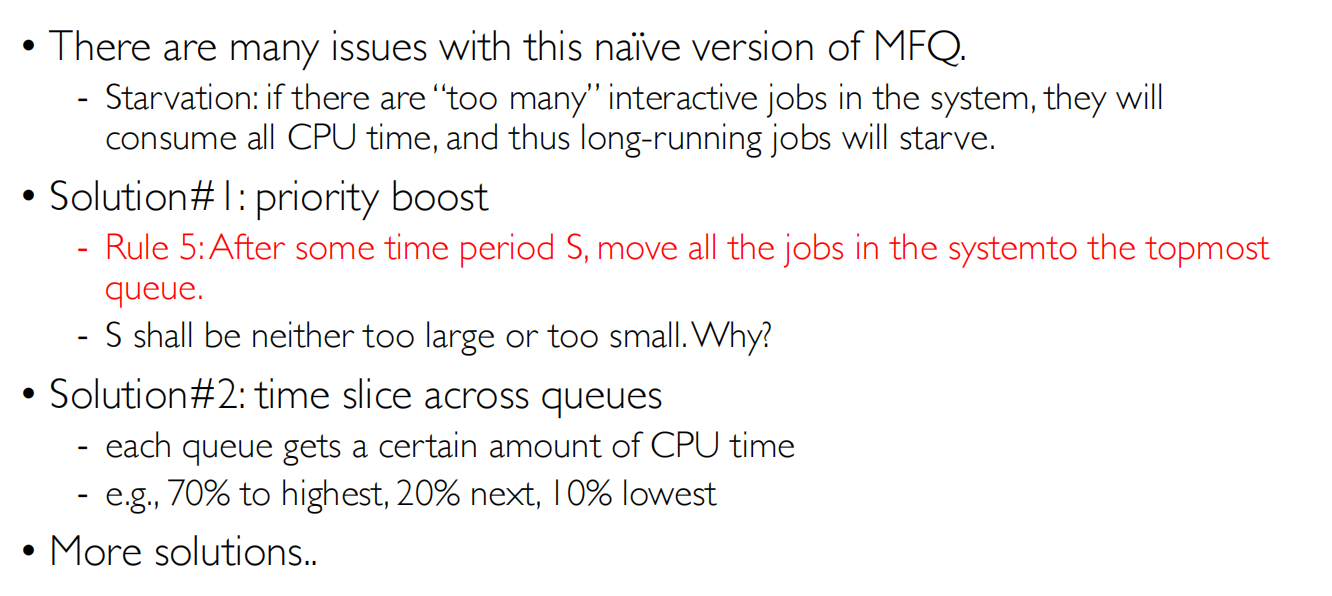

priority boost会引进新的参数

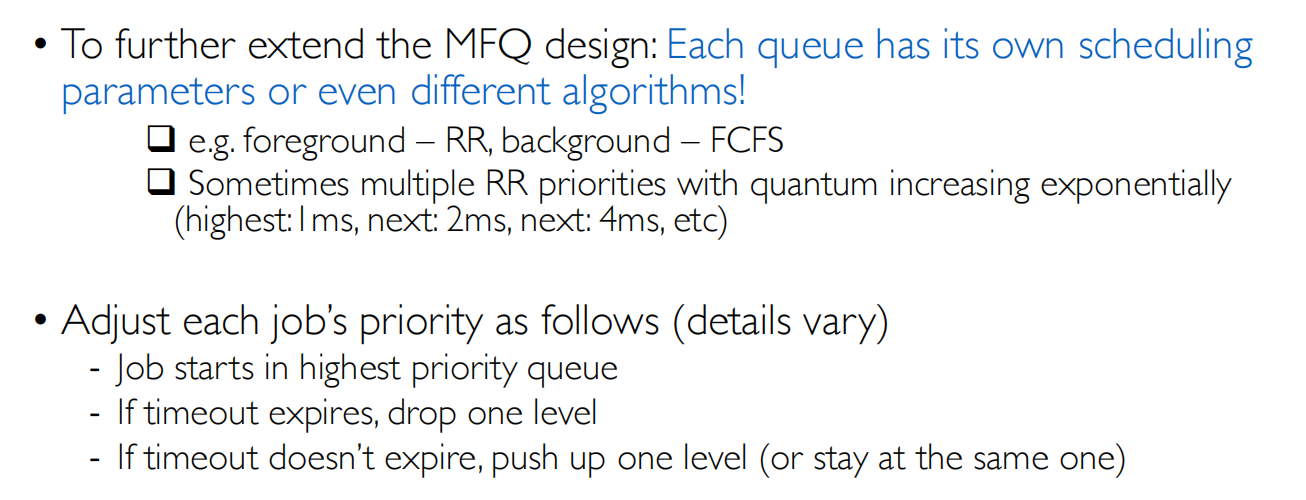

不同优先级给不同的时间片大小

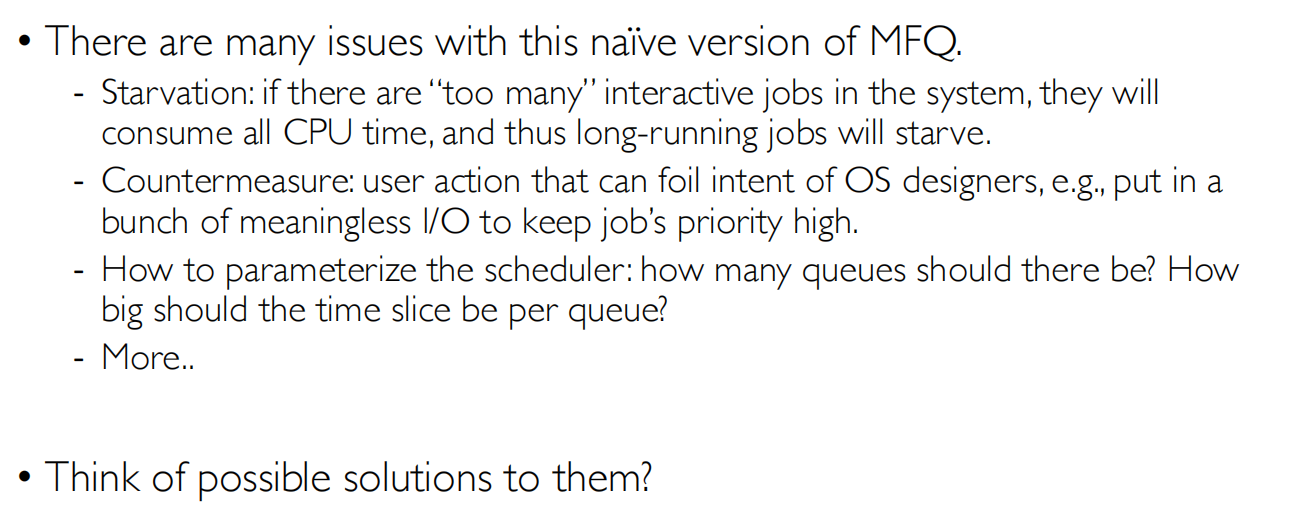

加一点I/O，伪装成高I/O的任务，多占据CPU时间
如何解决？
Tip
- 饥饿(Starvation)问题的解决：
实现老化(Aging)机制：定期提升长期等待进程的优先级
设置最长等待时间阈值，超过阈值强制提升优先级
在较低优先级队列增加时间片长度，让CPU密集型任务也能得到充分执行
- 针对用户滥用I/O操作提高优先级的对策：
实现I/O操作计数器，监控进程的I/O行为
当检测到异常频繁的I/O操作时，不提升或降低其优先级
区分真实I/O和虚假I/O操作，只对真实I/O做优先级奖励
- 调度器参数优化：
队列数量：通常设置3-8个级别，根据系统负载特征调整
时间片大小：
- 高优先级队列使用较短时间片(如20ms)
- 低优先级队列使用较长时间片(如100ms-200ms)
- 可以根据实际工作负载动态调整
实现动态调整机制，根据系统性能指标自适应调整参数
- 其他改进：
- 引入优先级提升窗口，限制提升频率
- 实现优先级继承，避免优先级反转
- 加入负载均衡机制，防止某个优先级队列过载
- 支持优先级预设，让系统管理员可以为特定应用设置合理的优先级范围
更高优先级的队列，时间片应该更小，以便于更快地响应高优先级的任务

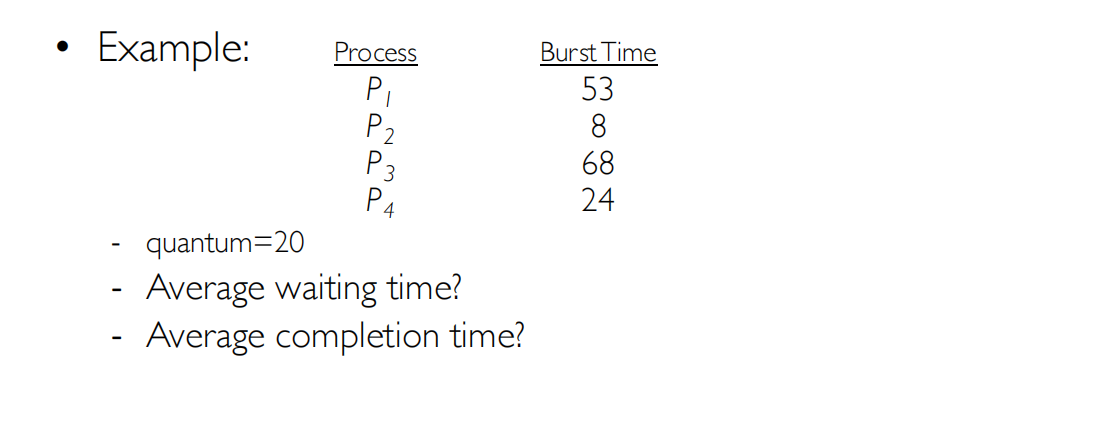

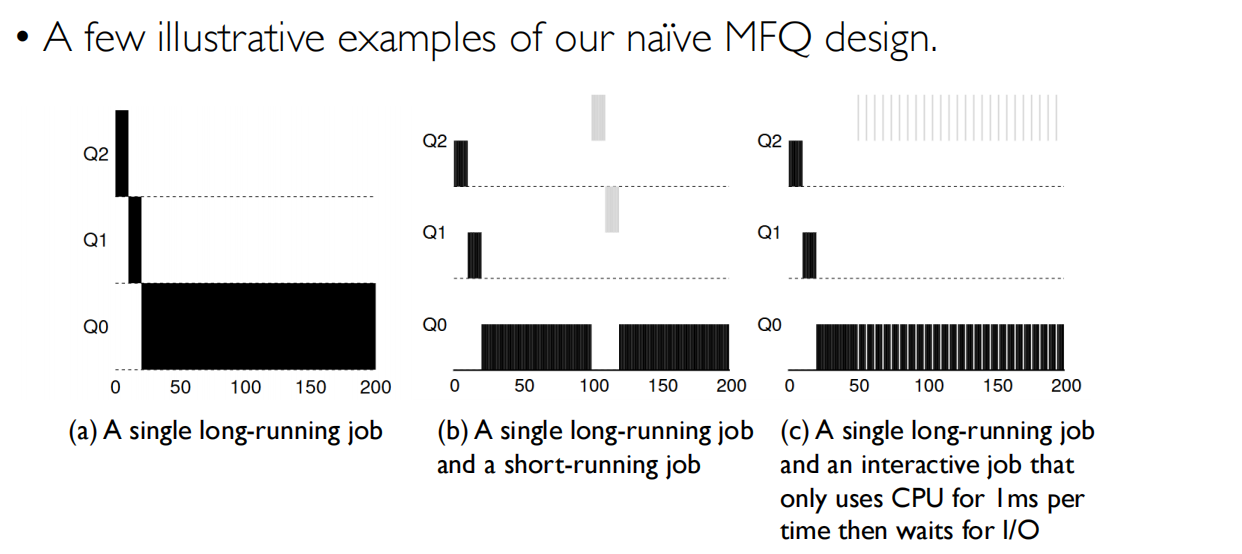

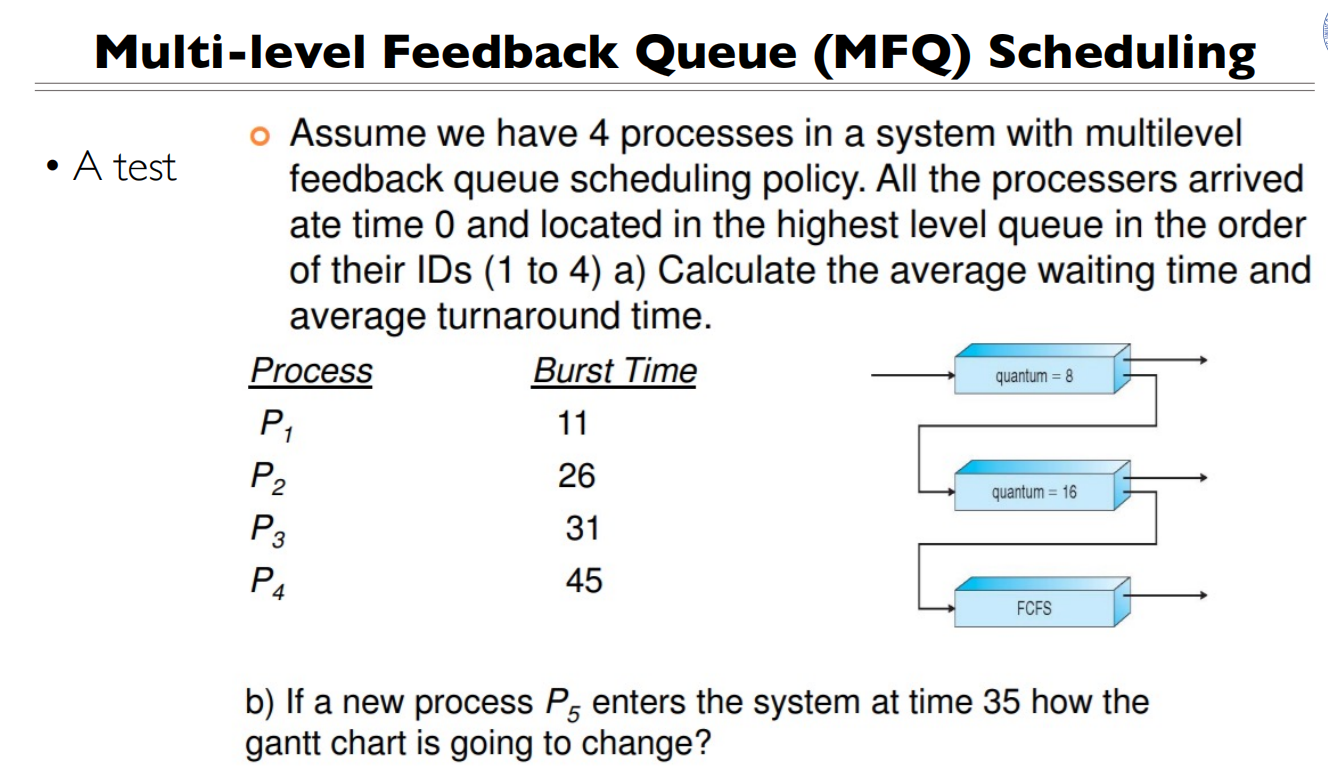

例子
等待时间=完成时间-所要运行的时间

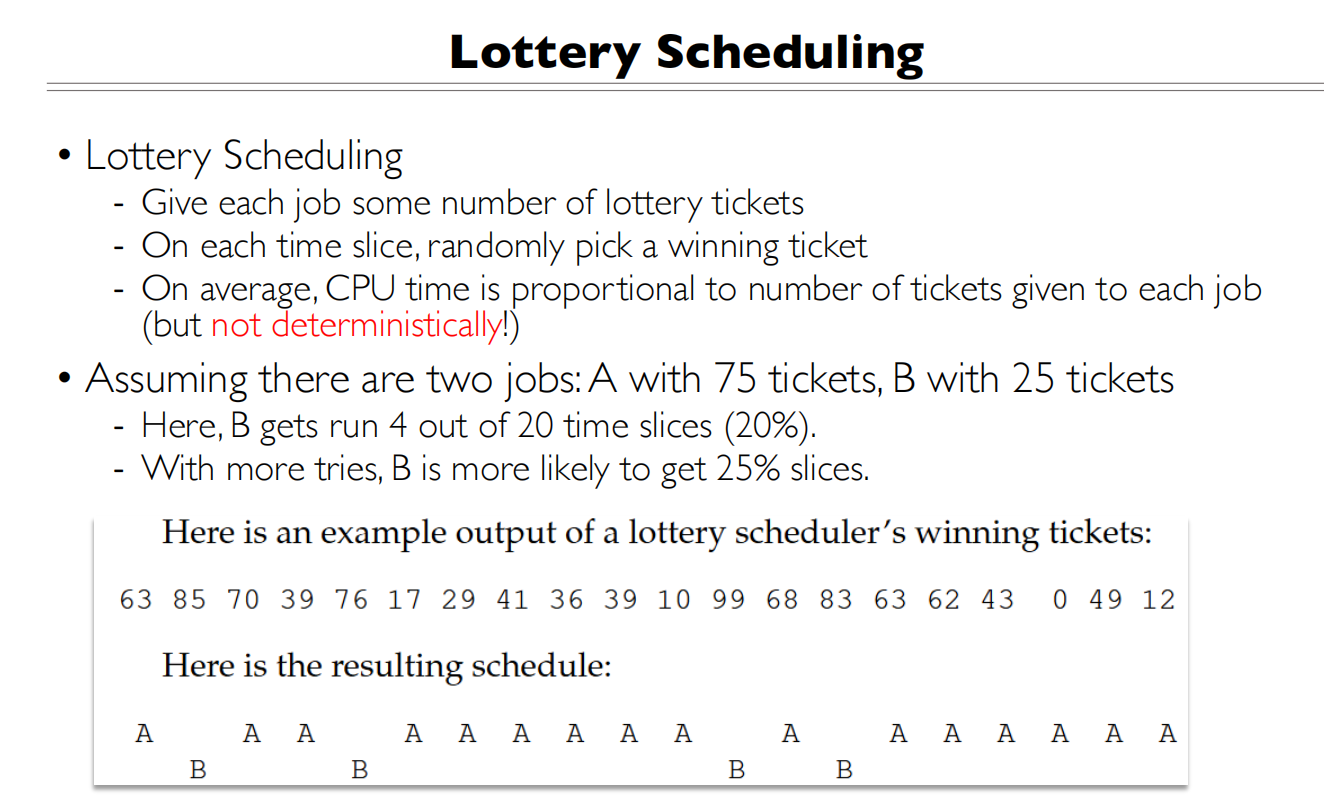

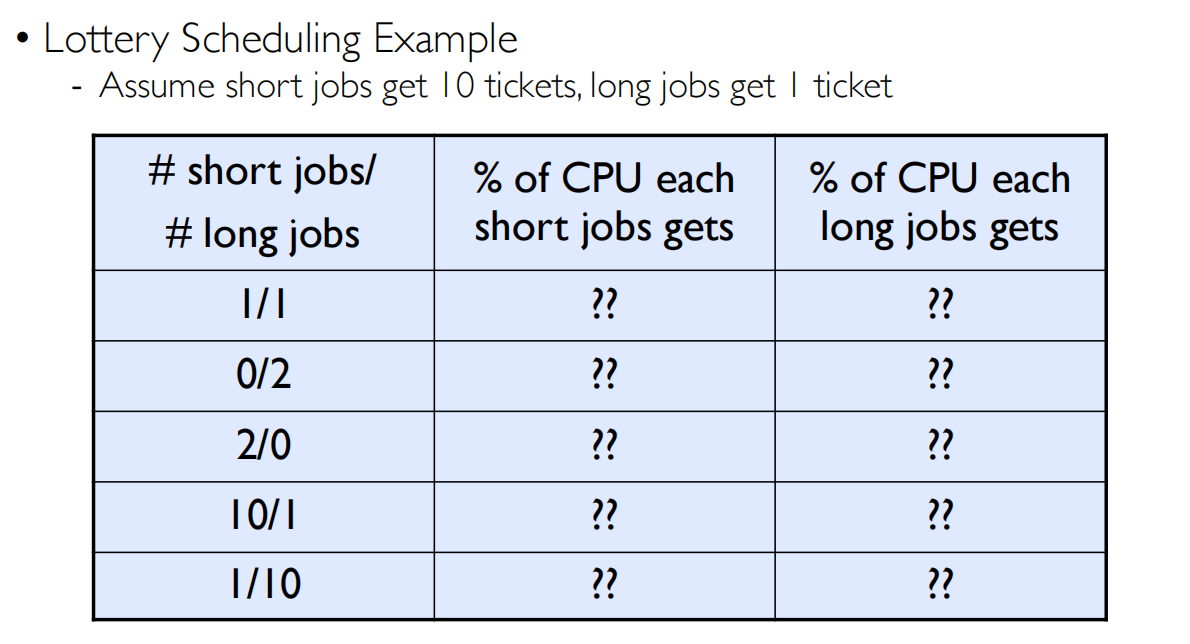

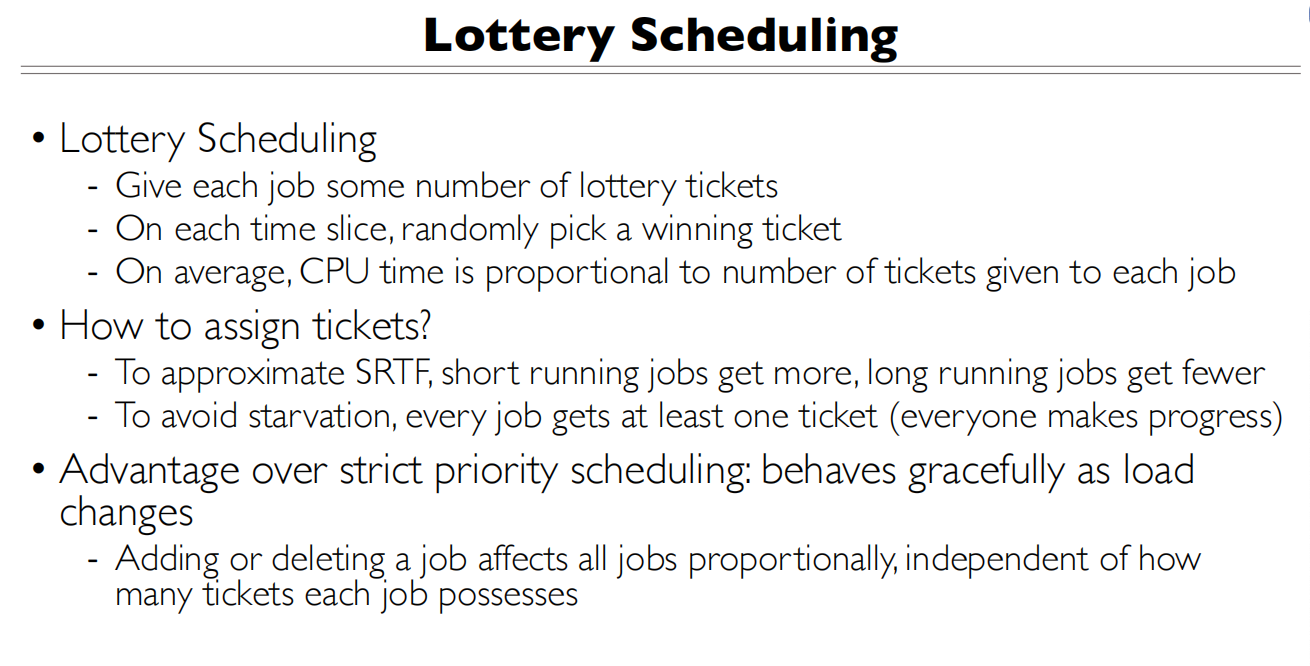

Lottery Scheduling
每个任务拥有的彩票在统计意义上和调度时间正比，但并不完全正比(大数定理)
实现很简单，而且当一个新任务加入/旧任务丢弃，会影响到其他的任务
- Implementing lottery scheduling is amazingly easy!
- One of the impor tant feature of it.
- You only need
- A good random number generator(随机数生成器)
- A data structure to track the processes of the system and the total number of tickets (链表)
优先级排序，可以将彩票数多的放在前面，链表遍历的节点数会变少

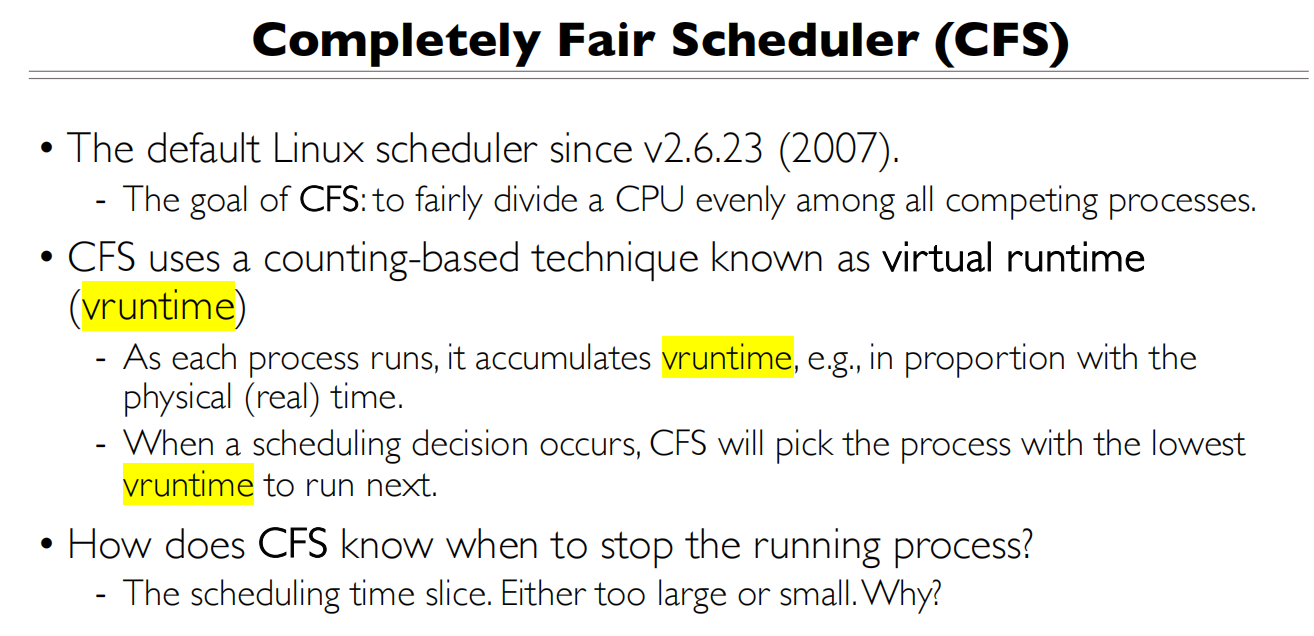

CFS
目的是让每个任务都获得比较公平的调度
Max-Min思想，每次选择一个vruntime 最小的任务调度

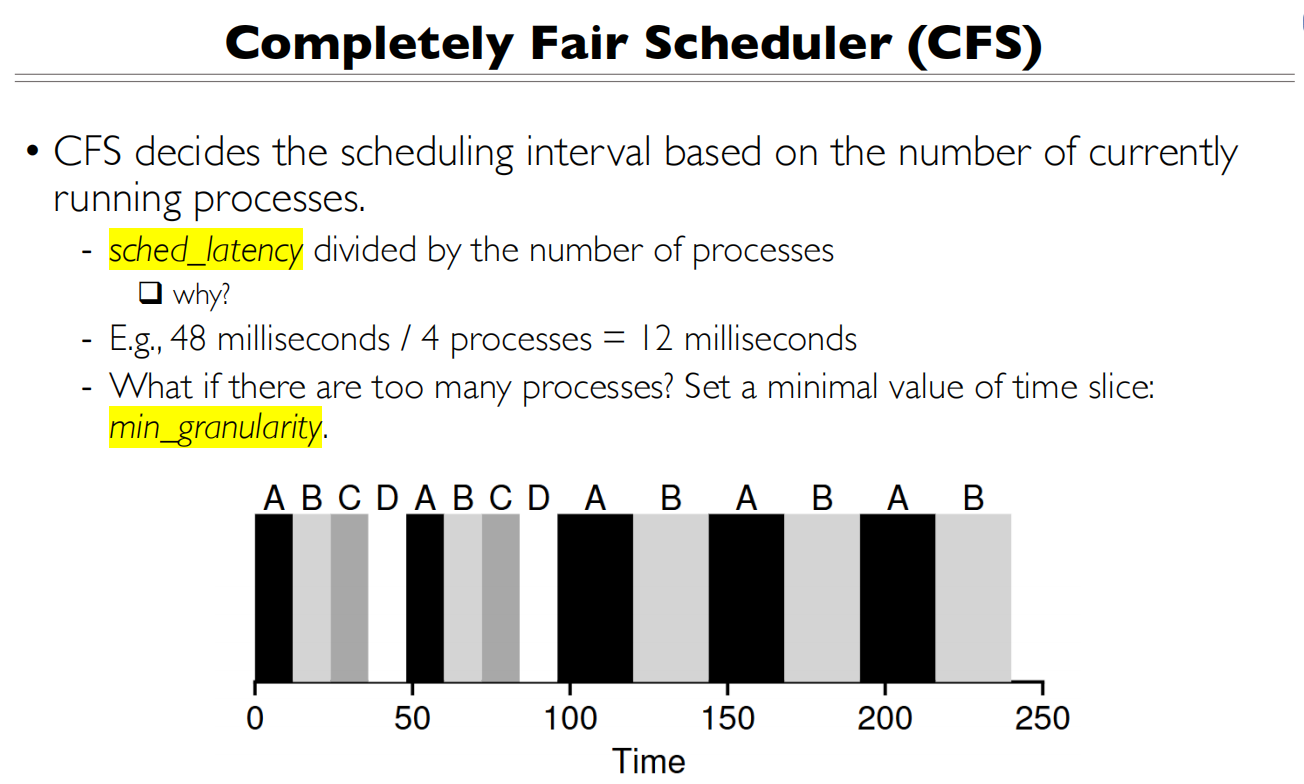

48是一个调度的周期，有4个任务，那么就是48/4=12 milliseconds。任务越多，调度的时间片越短

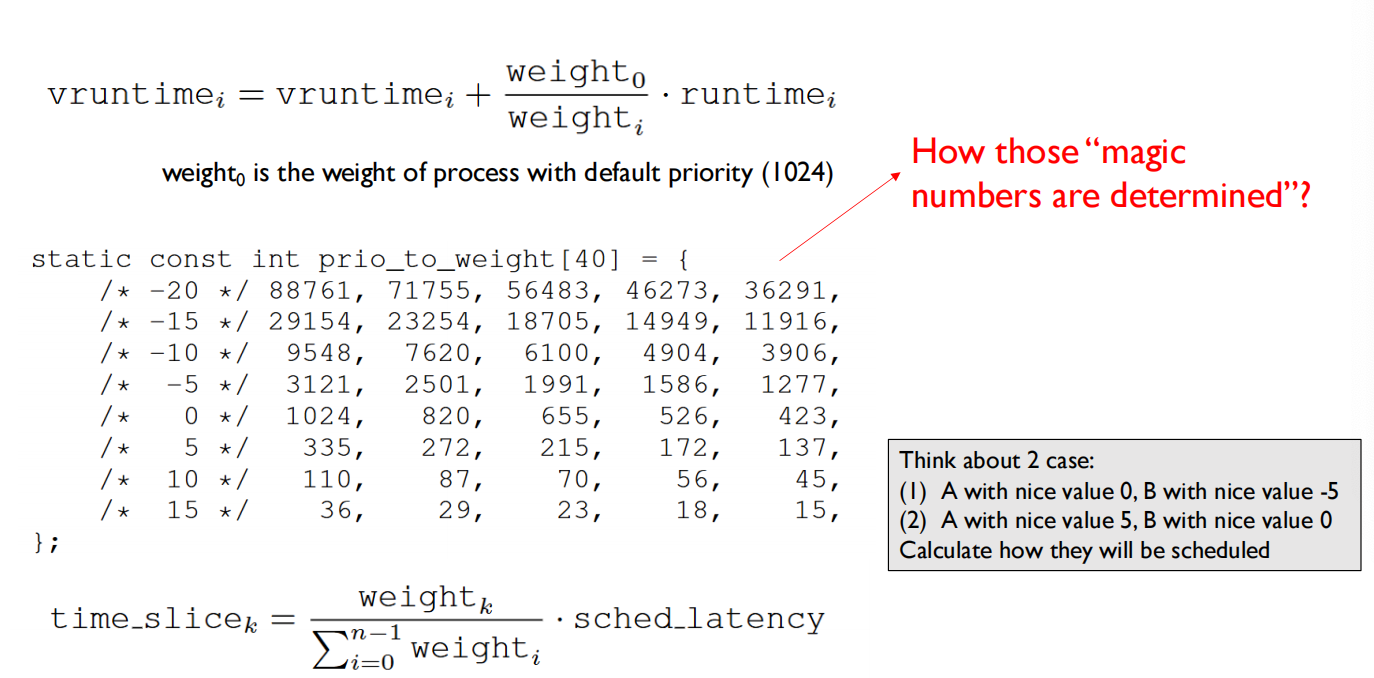

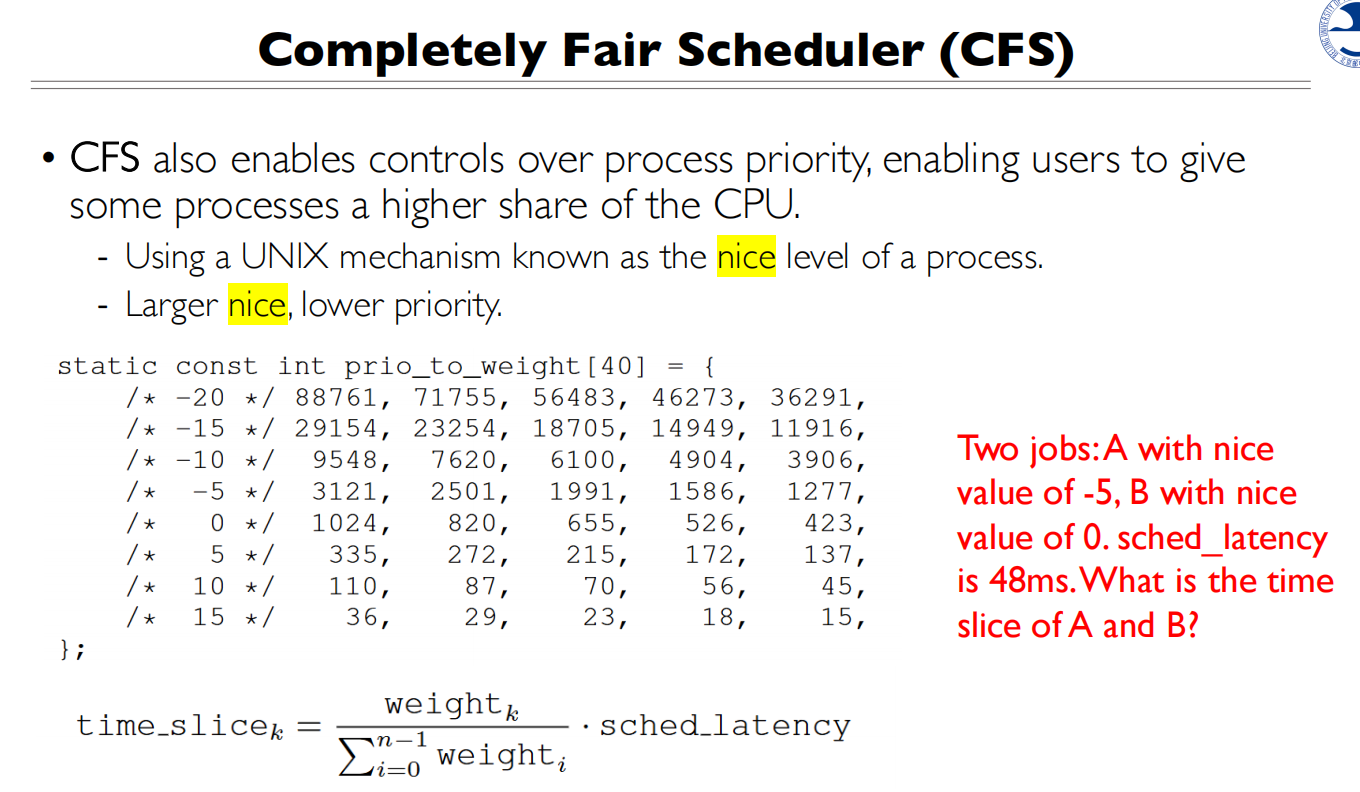

nice值可以认为是优先级，nice值越高，优先级越低
这两个Case的调度是一样的，所以和nice值的绝对值无关，和相对值有关
优先级越高，获得的时间片越多；高优先级进程的vruntime增长较慢

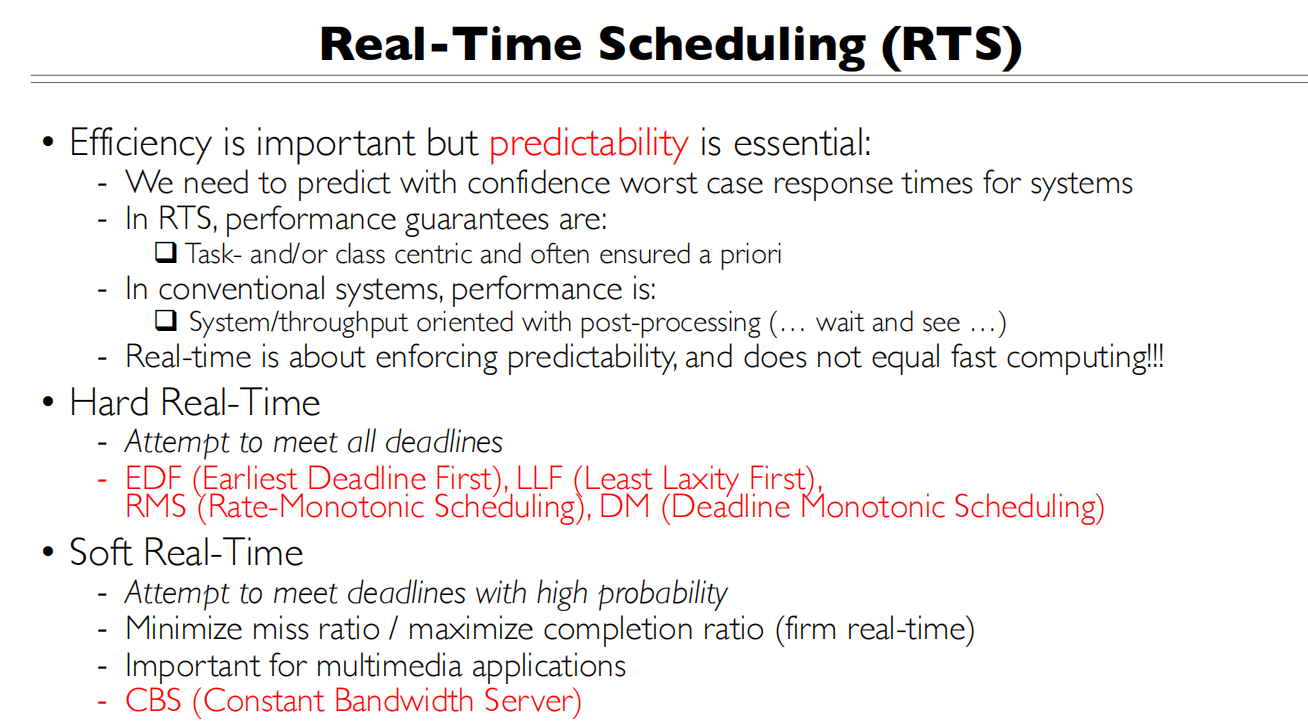

RTS
最重要的不是快，而是确定性

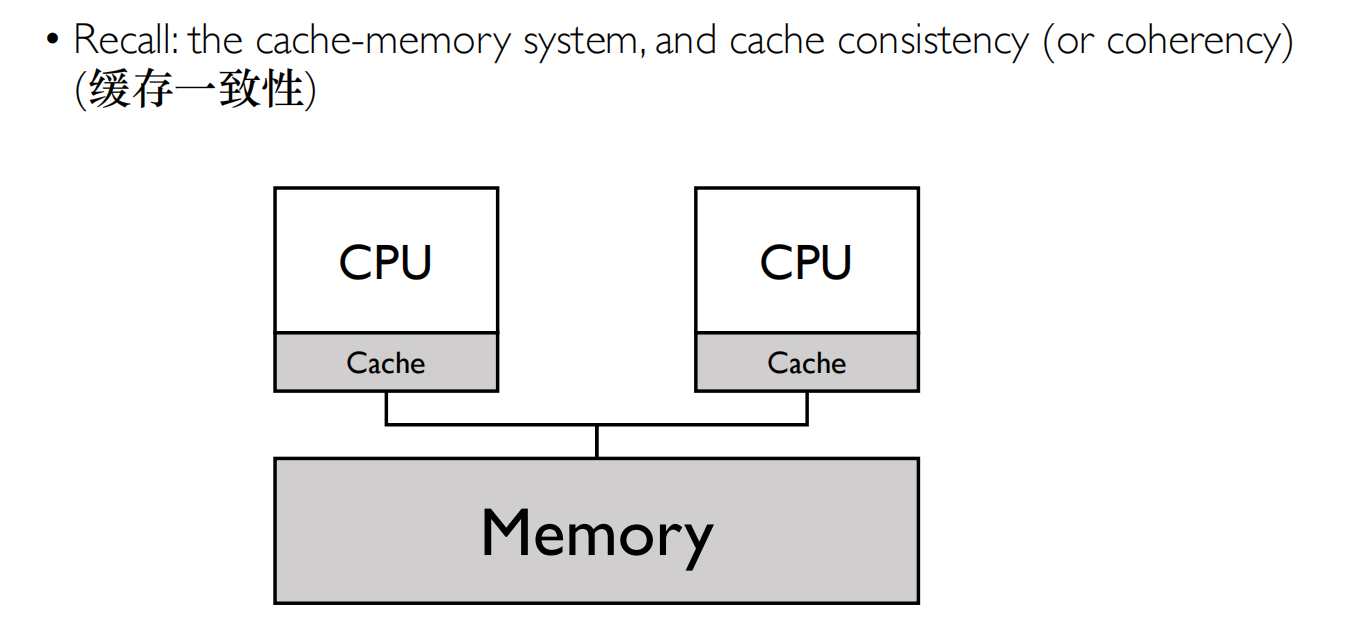

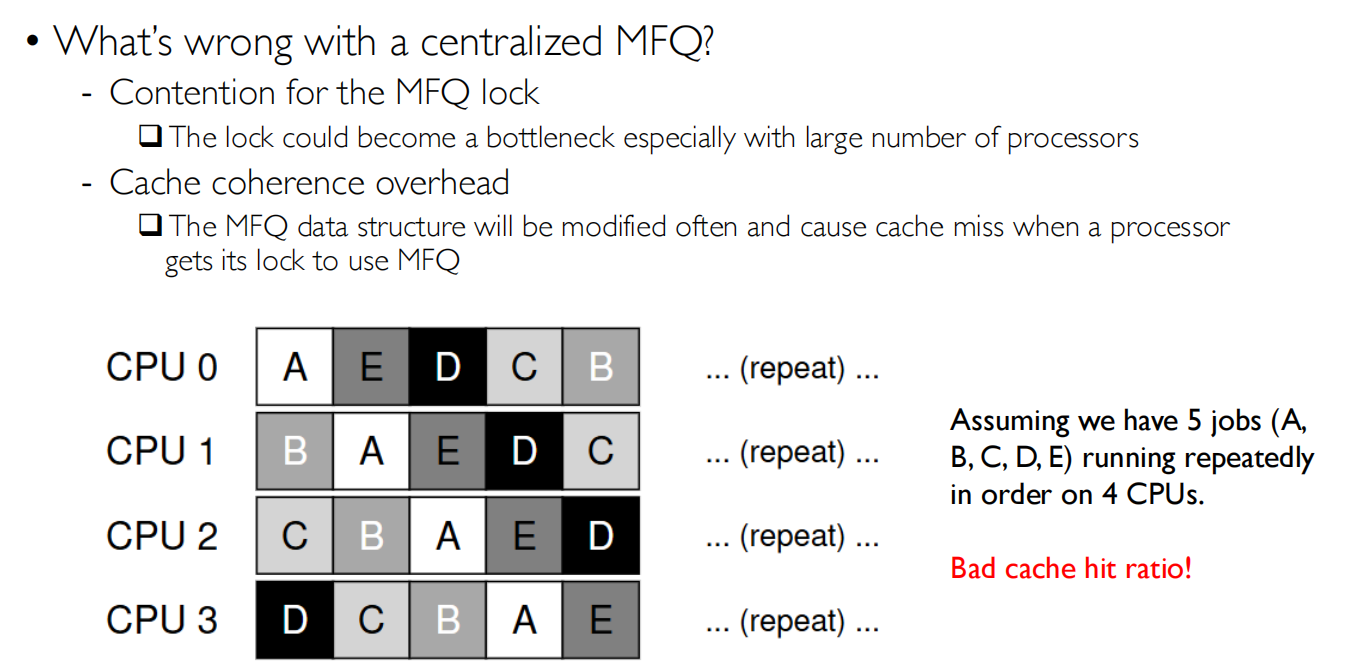

多处理器调度

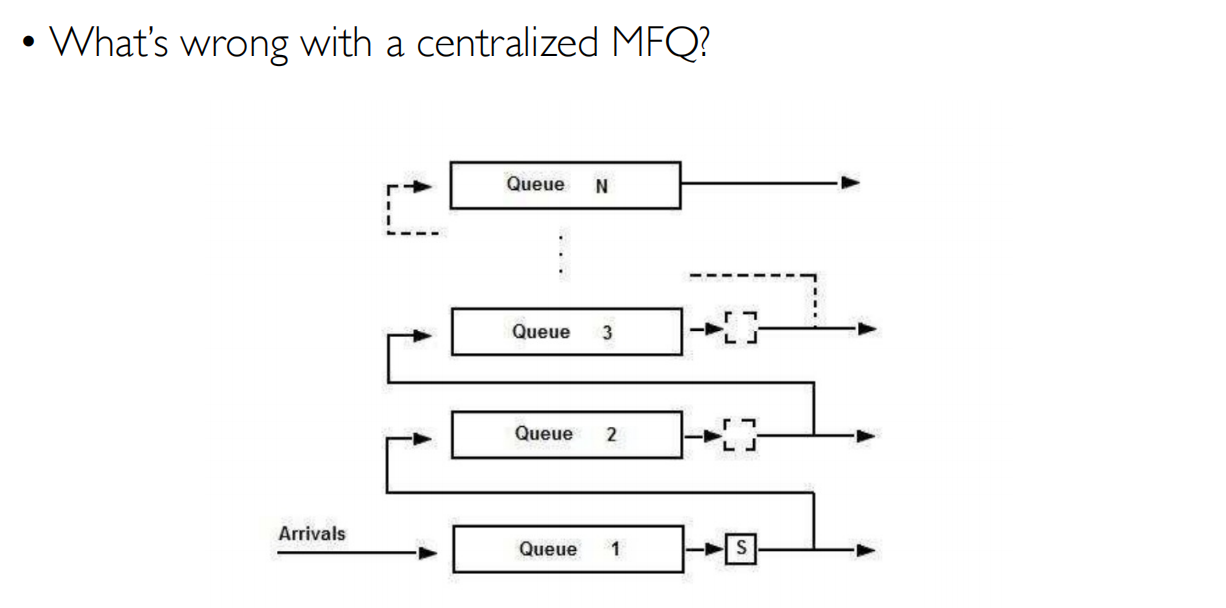

共享一个MFQ

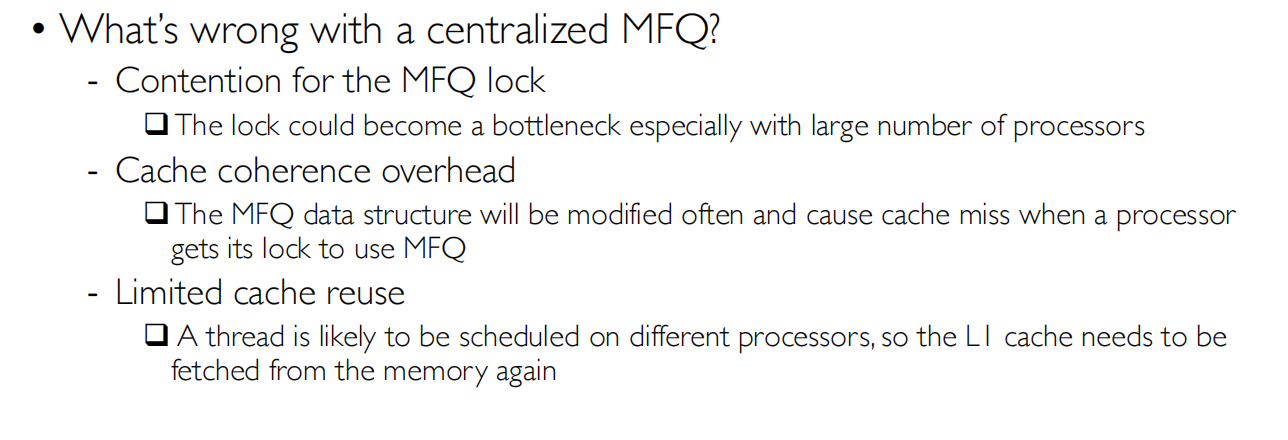

同步的问题，缓存命中率的问题

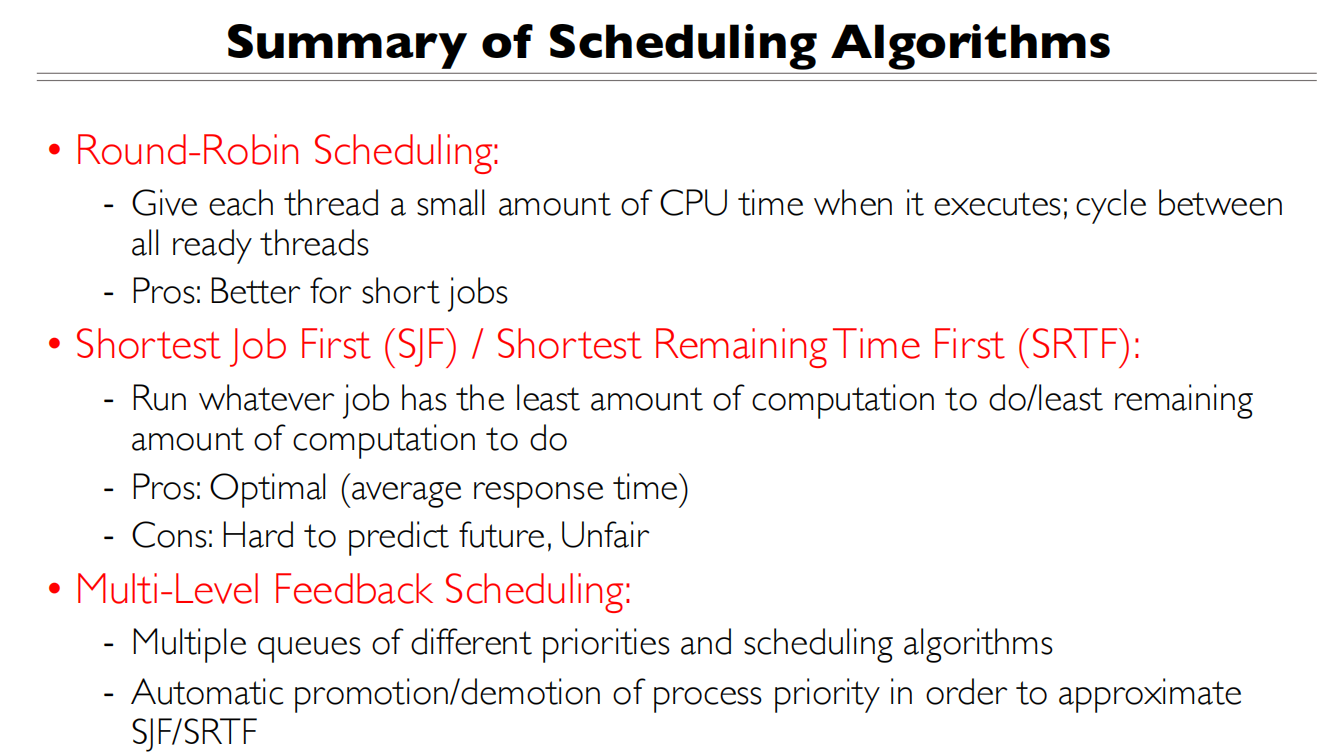

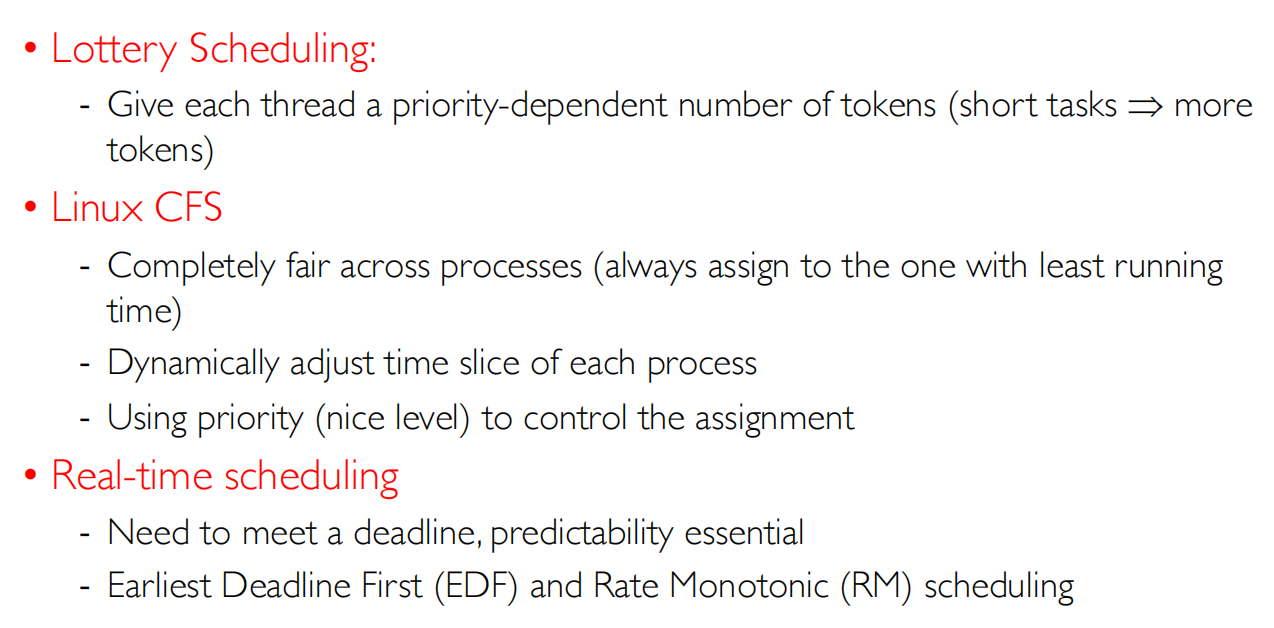

Summary
